Hierarchy management with Neo4j and Symfony

HierarchyBundle

Hierarchy Management with Neo4j and Symfony, _(*1)

This Symfony bundle manages a company hierarchy retrieving and stroring information to a Neo4j database. The hierarchy is based on groups: PHP group is part of Software Developement group, which is part of IT, etc. The users are members of these groups having differend kind of roles (manager, employee etc)., _(*2)

HierarchyBundle comes with a front where regular user can just browse data and an Admin area from where you can create, edit, delete info., _(*3)

I got the idea for this bundle from the Neo4j documentation: http://neo4j.com/docs/stable/examples-user-roles-in-graphs.html HierarchyBundle is using the Neo4jPHP library https://github.com/jadell/neo4jphp, _(*4)

Installation

Use composer:, _(*5)

composer require cpana/hierarchybundle

Register the bundle in AppKernel:, _(*6)

new CPANA\HierarchyBundle\CPANAHierarchyBundle(),

Add your parameters to app/config/config.yml:, _(*7)

cpana_hierarchy:
    group_hierarchy_manager_neo4j:
        neo4j_user:  'user'
        neo4j_password:  'password'
        def_rel_type_group_to_group: 'PART_OF'
        def_rel_type_user_to_group: 'MEMBER_OF'
        root_group_id: '11111'
        manager_role_property: 'manager'
        default_property_group:  'name'
        default_property_user: 'name'

You need to specify which is the root group node of your hierarchy by prodiving the Neo4j Id of that node in parameter "root_group_id"., _(*8)

Import routes to app/config/routing.yml:, _(*9)

cpana_hierarchy:
    resource: "@CPANAHierarchyBundle/Controller/"
    prefix:   /h
    type:     annotation

Install assets:, _(*10)

php app/console assets:install

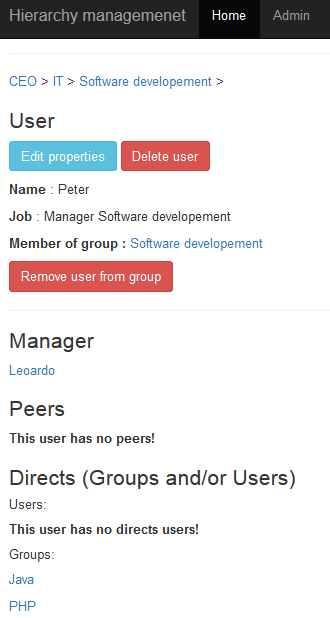

In your browser type your project path and add app_dev.php/h/admin/home. If you are using the sample data provided in the Wiki https://github.com/cristianpana86/HierarchyBundle/wiki/Sample-data search for user Peter, you should see something like this:, _(*11)

, _(*12)

TO DO: 1. Write tests 2. Handle nodes with 2 fathers, _(*13)
